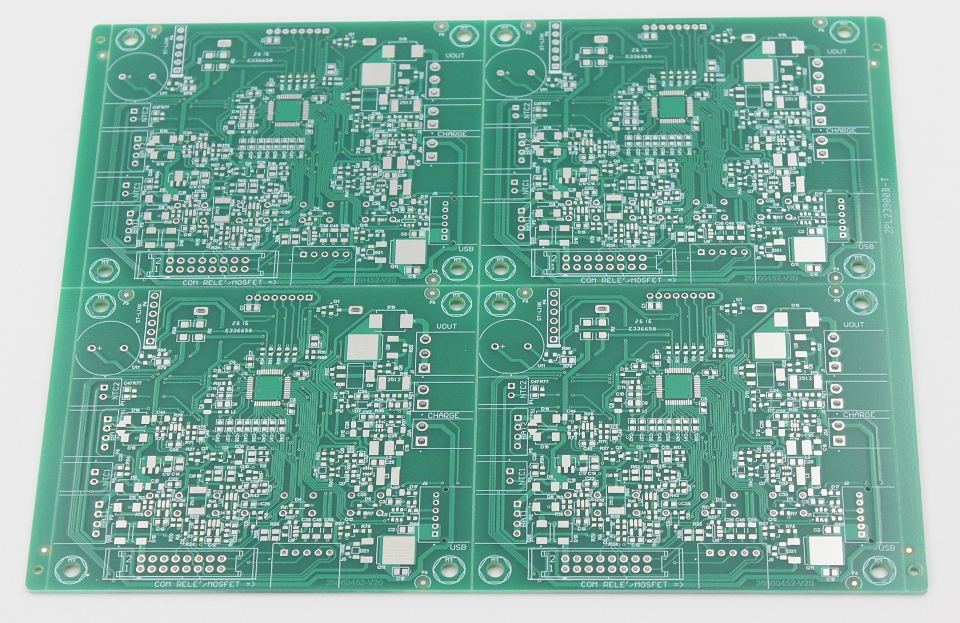

Double-Sided FR-4 Power Supply PCB | 2-6oz Heavy Copper Circuit Board | High Current Power Module PCB Manufacturing

410 Views

Custom double-sided FR-4 power supply PCBs with 1-6oz copper thickness options, designed for switch-mode power supplies, adapters, and UPS modules. Featuring high TG180 substrate, excellent thermal dissipation, and current carrying capacity. Supports impedance matching and BGA assembly processes. UL-certified for high-power power supply designs.

Get a Quote

Category :

Double layer PCB

Description

Manufacturing Capabilities:
Min. Trace Width/Spacing: 0.12/0.12mm (5/5 mil)
Min. Hole Size: 0.2mm
Hole Wall Copper Thickness: ≥20μm
Board Thickness Range: 0.4–3.2mm
Max. Board Size: 500×600mm / 450×1200mm
Surface Finish: OSP, Lead-Free HASL, ENIG (Electroless Nickel Immersion Gold)

Related Products

Custom Black Solder Mask Double-Sided HASL PCB FR-4 Circuit Board

Double-sided FR-4 circuit board with sleek black solder mask and lead-free HASL finish. Stable 4/4 MIL fine-line capability, ≥20 μm hole wall copper and full electrical testing make it a solid choice for audio, industrial and consumer electronics.

Custom White Solder Mask Double-Sided ENIG PCB Immersion Gold Circuit Board

Double-sided FR-4 circuit board with clean white solder mask and ENIG (immersion gold) finish. Ultra-flat gold pads suit fine-pitch SMD components, LED backlight modules and high-reliability designs in medical, automotive and communication devices.

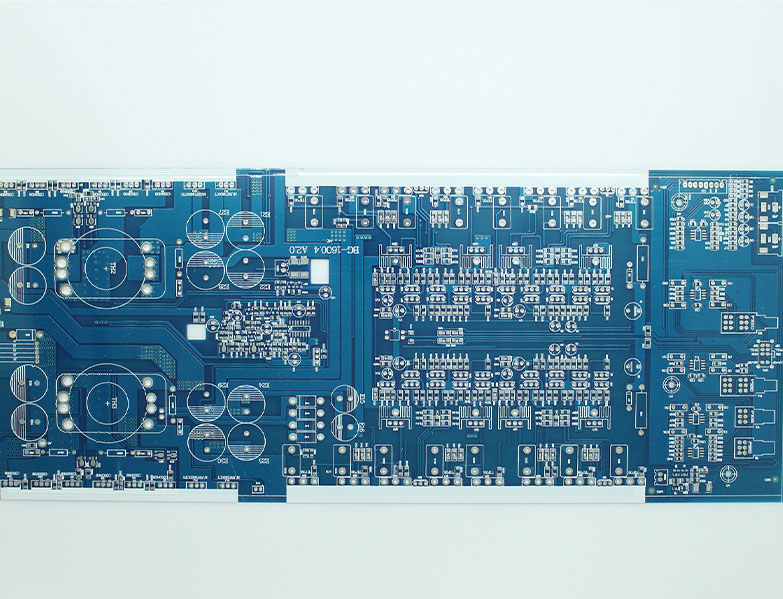

Custom Blue Solder Mask Double-Sided HASL PCB FR-4 Tin-Plated Circuit Board
